When it comes to precision measurement, especially of weight or force, one component stands out as absolutely critical: the load cell. Here at SWT Tech, where we develop intelligent systems for industries like agriculture, understanding and utilizing the right sensor technology is paramount. Load cells are the unsung heroes in countless applications, from industrial scales to our very own smart silo weighing systems.
But not all load cells are created equal. Different designs cater to different needs and applications. So, if you've ever wondered about the various types available and how to choose the best one, you're in the right place. Let's dive into the world of load cells!
At its most fundamental, a load cell is a type of transducer, specifically a force transducer. It converts a mechanical force, such as tension, compression, pressure, or torque, into a measurable electrical signal. This electrical signal can then be amplified, processed, and displayed as a weight or force reading.
The vast majority of modern load cells, and the ones we'll focus on, are load cells for weighing. These contain one or more strain gauges – tiny, sensitive resistors that change their electrical resistance when they are stretched or compressed. When a force is applied to the load cell body, it deforms slightly (elastically), causing the strain gauges bonded to it to deform as well. This change in resistance is proportional to the applied force.
Their importance cannot be overstated. Load cells are crucial for:
Accurate weighing: From bathroom scales to massive truck scales and industrial hoppers.
Process control: Monitoring material flow, batching ingredients.
Safety systems: Detecting overloads or imbalances.
Testing and measurement: In material testing, automotive research, and more.
Smart systems: Providing the essential data for systems like our intelligent silo weighing solutions at SWT Tech.
Before we jump into the specific types based on their physical shape, it's worth re-emphasizing that the strain gauge is the heart of most common load cells.
Imagine a very fine wire or foil arranged in a grid pattern.
This grid is bonded to the surface of the load cell's structural element (the "spring element").
When force is applied, the structural element deforms.
This deformation stretches or compresses the strain gauge.
Stretching increases its electrical resistance; compressing decreases it.
This change in resistance, though small, can be precisely measured using a Wheatstone bridge circuit configuration (typically, multiple strain gauges are used in a bridge for better accuracy and temperature compensation).
This clever principle allows for highly accurate and repeatable force measurements.
While the strain gauge principle is common, the physical design of the load cell body dictates how it best senses force and where it's most suitably applied. Here are four common types:
Beam Load Cells (e.g., Bending Beam, Shear Beam)
How they work: These are typically long, bar-shaped load cells fixed at one or both ends. Force applied perpendicular to the beam's length causes it to bend (bending beam) or experience shear stress (shear beam). Strain gauges are strategically placed to measure this bending or shear.
Pros: Relatively simple, cost-effective for many applications, good for dynamic loading. Shear beams offer better resistance to off-axis loads and are often hermetically sealed.
Common Applications: Platform scales, hopper and tank weighing, conveyor belt scales, and general industrial weighing.

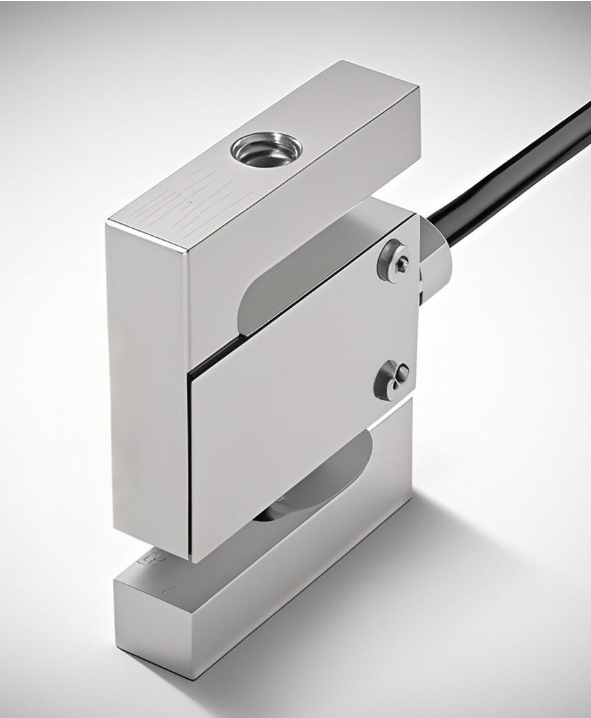

S-Type Load Cells (or Z-Type)
How they work: Named for their characteristic "S" or "Z" shape. They are designed to measure both tension (pulling force) and compression (pushing force) along a single axis. Strain gauges are placed on the central sensing beam.
Pros: Versatile for tension and compression, relatively compact.
Common Applications: Hanging scales, crane scales, tensile testing machines, hopper/tank weighing (in tension), mechanical scale conversions.
.png "S-Type Load Cells (or Z-Type).png")
Canister (or Compression) Load Cells
How they work: These are typically cylindrical and designed primarily for high-capacity compression applications. The force is applied axially to the top (and sometimes bottom) surface. Strain gauges are often arranged on internal columns or diaphragms.
Pros: Very robust, high accuracy for large loads, excellent overload protection. Often available in hermetically sealed versions.
Common Applications: Truck scales, rail scales, large silo and tank weighing systems, heavy-duty industrial weighing, force calibration systems. This type is often ideal for the high capacities needed in systems like our SWT Tech intelligent silo weighing.
_Load_Cells.png "Canister (or Compression) Load Cells.png")

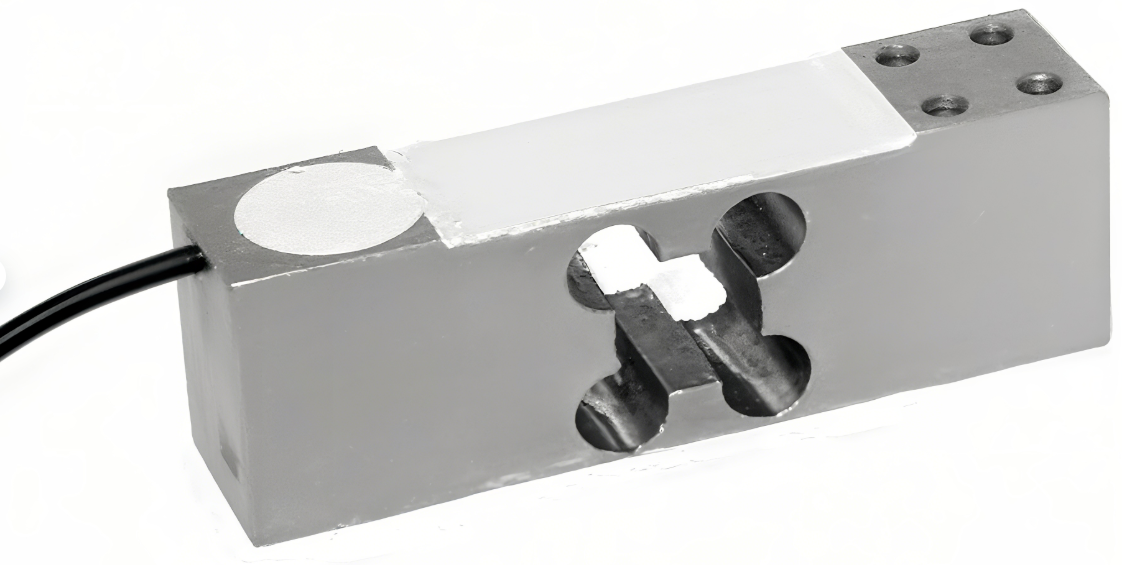

Single-Point Load Cells (or Platform Load Cells)
How they work: Designed to be used individually under a platform, accurately measuring weight regardless of where the load is placed on the platform (within specified limits). They have internal moment compensation.
Pros: Cost-effective for smaller platform scales, simplifies scale construction.
Common Applications: Retail scales, bench scales, small hopper scales, and medical scales.
.png "Single-Point Load Cells (or Platform Load Cells).png")
Choosing the right load cell isn't just about picking a type; several factors come into play:
Capacity: The maximum load the cell is designed to measure. Always select a capacity that comfortably exceeds your expected maximum load, considering potential overloads.
Accuracy: Specified by classes (e.g., OIML, NTEP) or parameters like non-linearity, hysteresis, and repeatability.
Environmental Conditions: Temperature variations, moisture, dust, corrosive substances, or hazardous atmospheres (requiring intrinsically safe or explosion-proof designs) will dictate material (e.g., stainless steel) and sealing (e.g., IP67, IP68).
Physical Size and Mounting: Does it fit your application? Are the mounting arrangements suitable?
Output Signal: Standardized mV/V output is common, but some have amplified or digital outputs.
Number of Load Cells: Some applications (like large platforms or silos) use multiple load cells summed together.
Understanding the different types of load cells and their characteristics is the first step towards accurate and reliable force or weight measurement. Each design offers unique advantages suited to particular applications. At SWT technologies, we leverage this understanding to integrate the most appropriate sensor technology into our smart solutions, ensuring precision and dependability. Whether it's for agriculture, swine, poultry, or any application where precise measurement matters, the humble load cell plays a vital role. If you have questions about load cells or how smart sensor technology can benefit your operations, don't hesitate to reach out to our team!
